NS C-Series Extruders Are Specially Designed & Developed For Continuous Output. Its Specially Designed
Screw Ensures Maximum Output. Both Barrel &Screw Are Treated With Special Stellite Welding or Nitriding
For Better Wear Protection And Longer Life.

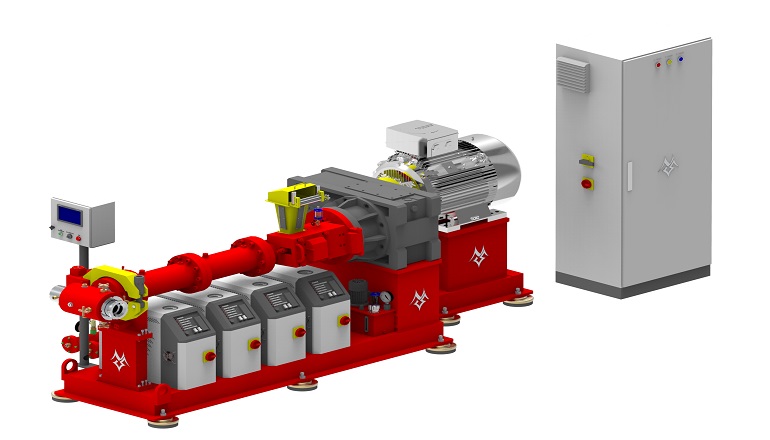

Cold Feed Extruder – Pin & Plain Type
# Also Available In Vacuum Type
Our Extruders Are Specially Made For ..
1. Continues Output
2. Effective Feed Roll Assembly
3. Best In The World Screw & Barrel Design
4. Better Wear Protections
5. Head Profiles – Custom Made To Withstand High Pressure Upto 750 Bar
6. Easy Installation & Maintenance
7. Made To Order To Cater Customize Requirement
8. Longer Life Expectancy
9. IoT Enabled / Industry 4.0 Product
8. Screw L/D up to 21:1
| NS C-series Extruder | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model No. | C1 | C2 | C3 | C4 | C5 | C6 | C7 | C8 |
| Screw Dia (mm) | 45 | 60 | 75 | 90 | 120 | 150 | 200 | 250 |
| Screw Speed (r.p.m) | Upto 50 | Upto 50 | Upto 50 | Upto 50 | Upto 50 | Upto 50 | Upto 40 | Upto 40 |
| Capacity (TON / HR) | 0.15 | 0.25 | 0.3 | 0.4 | 0.75 | 1.2 | 2.5 | 4 |
